Precision control for demanding PCP systems
Input voltage
3x380…480 V (-15%…+10%)
Operating temperature range (with options)
-40 °C…+50 °C (-40°F…+122°F) without power reduction
Output current range
17.5 A ... 370 A
Efficiency
Up to 98%
Discover the engineering advantages that set the AT24 RT apart - and keep your operations running at peak performance.
Includes software functions designed specifically for eliminating pump jamming, which increases operational efficiency and reduces failure risks associated with PCP systems.
Features specialized algorithms designed for the process of sand removal from the pump (also referred to as pump cleaning).
Provides specific protection against pump paraffinization.
The use of an optional Active Rectifier achieves current distortion (THDi) of less than 5%, ensuring compliance with the IEEE-519 standard and allowing for energy recuperation back into the electric network during generator mode.
Provides robust enclosure protection, with a base rating of IP54/NEMA3R and the option to upgrade to IP66/NEMA4 for installation in harsh, high-dust, or moist environments.
Offers high-quality vector motor control for precise speed management, achieving trouble-free system operation and maximum protection for the motor and mechanism.
Utilizes optimization algorithms to maximize flow rate by controlling and maintaining the fluid flow or pump speed, or pressure based on sensor input or pump filling level.

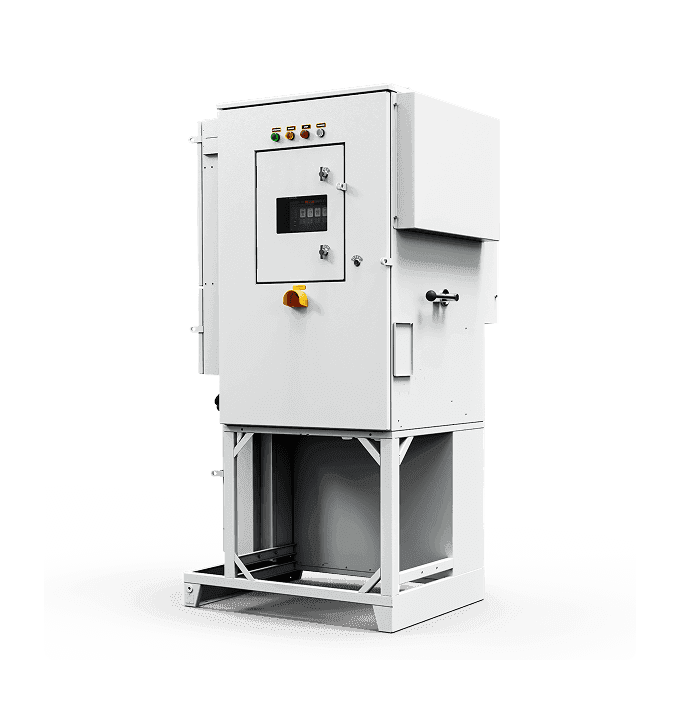

Look inside the AT24 RT to see how smart design becomes real-world performance, efficiency, and uptime.
your reality, your challenges, your success.
Submit your request or question, and our team of specialists will contact you.
Our sales team will contact you as soon as possible.
Built through partnership. Proven by engineering. Trusted in the toughest conditions. Full-cycle production. Total reliability. Systems that perform where others fall short.
Meet our team
Meet the team behind innovations that drive industries forward. Engineers, designers, and experts turning challenges into solutions.
Triol’s partners
We collaborate with leading Oil & Gas and industrial companies worldwide to deliver efficient, proven solutions tailored to their unique challenges.
Sustainability
Because real sustainability starts at the design table - not at the marketing one - we engineer systems that conserve, protect, and outperform over time.
Technology
Where others deliver equipment, Triol delivers systems. Modular, intelligent, and field-ready. Built for the complexity of modern industry.
Implementations
Global reach, industrial depth: Triol systems implemented across continents and critical sectors.
Mains frequency
50/60 Hz (-5%...+5%) with 6-pulse rectifier or active rectifier
Enclosure protection class
IP54/NEMA3R (base); up to IP66/NEMA4 (option)
Rated overload characteristic
120% rated output current during 60 s
Speed control accuracy (static)
Better than 0.1% of the rated speed (in open loop)
Output frequency range (max)
Up to 600 Hz (on request)
Harmonic compliance standard
Compliance with IEEE-519 standard (via Active Rectifier or passive filter)
