Power you can trust. Control you can’t outgrow.
Rated output current
100 A - 3000 A
Operating temperature range
-20°C to +60°C (-4°F to +140°F)
Enclosure protection rating
NEMA 4, NEMA 4X
Efficiency
96%

Discover the engineering advantages that set the AK06 UD apart - and keep your operations running at peak performance.

With a current range from 100 A to 3000 A, the AK06 UD outperforms harmonic-focused models capped at 2000 A. Its capacity makes it the essential solution for the most demanding, high-extraction, high-load pumping applications.
up to 3000 A
The drive supports the broadest range of rectifier configurations - 6, 12, 18, and 24 pulses - enabling precise alignment with harmonic mitigation needs. This flexibility removes the necessity for specialized “clean power” or phase-shifting cabinets when a standard multi-pulse setup fully covers the application.
6 - 24 pulse
The AK06 UD is engineered for maximum serviceability: every module is easy to access, replace, and maintain during installation, operation, and repair. When rapid recovery and simple field maintenance matter more than footprint, this design becomes the clear choice.
The AK06 UD uses an isolated air-to-air heat exchanger that prevents outside contaminants from reaching the power electronics.
With NEMA 4 and NEMA 4X enclosures in carbon or stainless steel, the UD is built for severe onshore and offshore conditions. This higher protection level surpasses NEMA 3R designs, offering superior resistance to water ingress, corrosion, and aggressive weather.

The AK06 UD supports high-speed Permanent Magnet Motors with output frequencies up to 600 Hz, enabling applications that standard drives cannot reach. This capability is crucial for advanced submersible pumping systems requiring fast, efficient, high-frequency motor control.
up to 600 Hz

Rated for continuous operation at ambient temperatures up to +60°C (+140°F), the UD outperforms lines capped at +50°C. This extended tolerance makes it the reliable choice for extreme desert heat, tropical climates, and high-temperature industrial sites.
up to +60°C

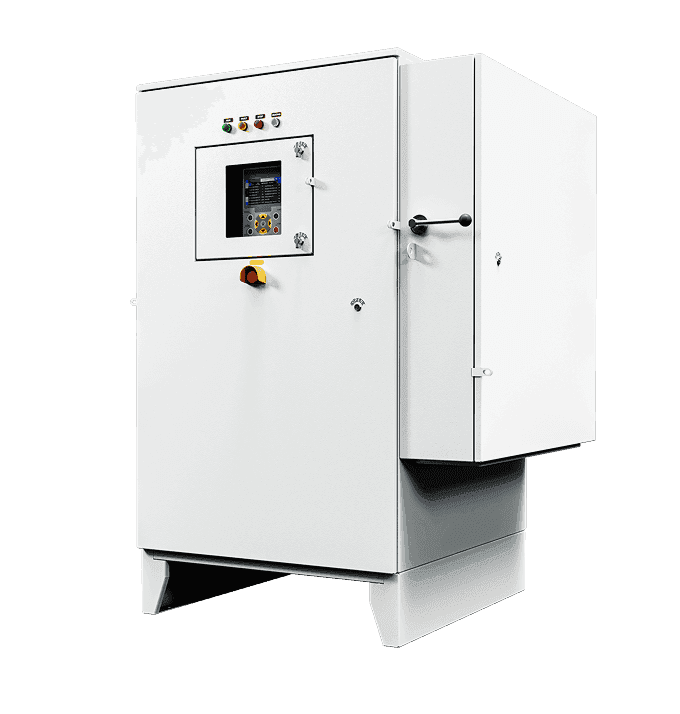

Look inside the AK06 UD to see how smart design becomes real-world performance, efficiency, and uptime.

Output frequency
Induction Motor (IM): 1.5 - 80 Hz Permanent Magnet Motor (PMM): 1.5 - 200 Hz High-Speed PMM: Up to 600 Hz
Supply voltage
3x380 V (± 15%) / 3x480 V (-15% ... + 10%) (Versions up to 690 V are available)
Input rectifier configuration
6, 12, 18, or 24 pulses
Overcurrent capability (overload)
120% of rated value for 60 seconds
Cooling system type
Air-to-air heat exchanger (for power compartment) and forced air (for power circuit elements)
Voltage sag ride-through value
-50% voltage: Continuous operation (with reduced output power) -65% voltage: Up to 500 ms
