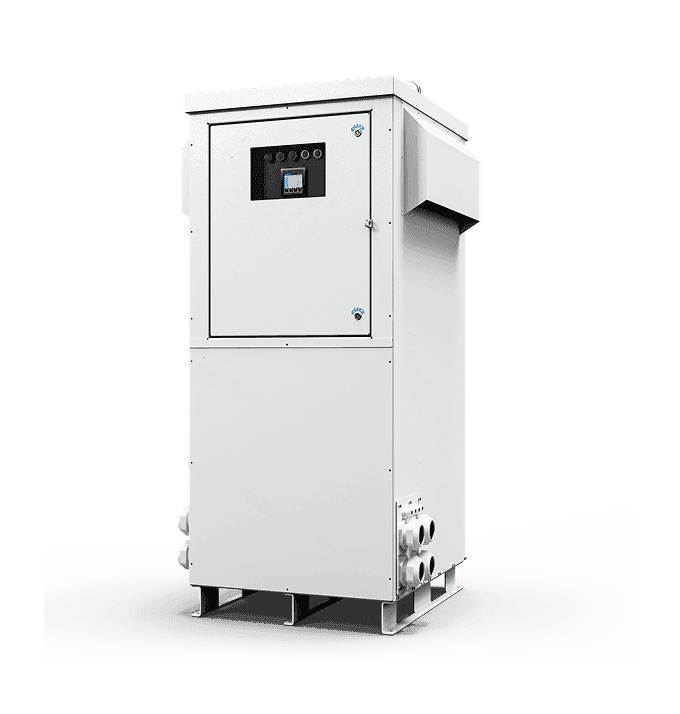

Passive filter PF01

Harmonic control without changing the drive.

THDi performance

<5%, <8%, or <10% (at 70%+ load, or 30%+ with optional mode)

Efficiency

98% at rated load

Input voltage range

380 V, 480 V, 690 V (±10%)

Mains frequency

50 Hz or 60 Hz (-1..+1 Hz)

Key features: PF01

Discover the engineering advantages that set the PF01 apart - and keep your operations running at peak performance.

Capacitor protection system

To ensure reliability, the filter includes circuit breakers or contactors in the resonant circuit that can shut down capacitors in case of failure or during specific load modes, preventing total equipment shutdown.

Plug & play design

The PF01 is engineered as a complete, ready-to-use unit with an ergonomic design, ensuring easy installation and integration into existing power systems without complex setup procedures.

Selectable THDi levels

The series offers flexibility in harmonic mitigation performance, with models available to achieve THDi levels of ≤ 5% (superior reduction), ≤ 8% (balanced), or ≤ 10% (moderate), depending on the criticality of the application.

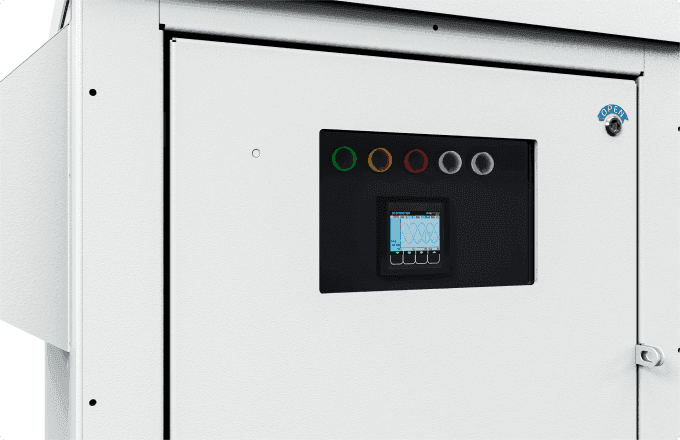

Advanced power quality monitoring

The device features a built-in power meter/analyzer that constantly monitors grid quality, records trends, and transfers data to SCADA systems, allowing for prompt responses to power quality issues.

Extreme temperature adaptability

The filter is designed for a wide range of environments, capable of operating in temperatures ranging from -40°C to +55°C (with forced cooling options), and includes internal temperature sensors to prevent overheating.

Patented full & half power mode

Unlike standard filters, the PF01 offers a patented solution that maintains declared THDi levels even under varying load conditions (30% to 100%) while reducing total power consumption by up to 30%.

Integrated output choke option

The PF01 can be equipped with an output choke, allowing it to operate effectively with loads that lack a built-in DC-link choke, effectively adapting to the customer's specific drive equipment.

Inside the solution: features that drive your results

Look inside the PF01 to see how smart design becomes real-world performance, efficiency, and uptime.

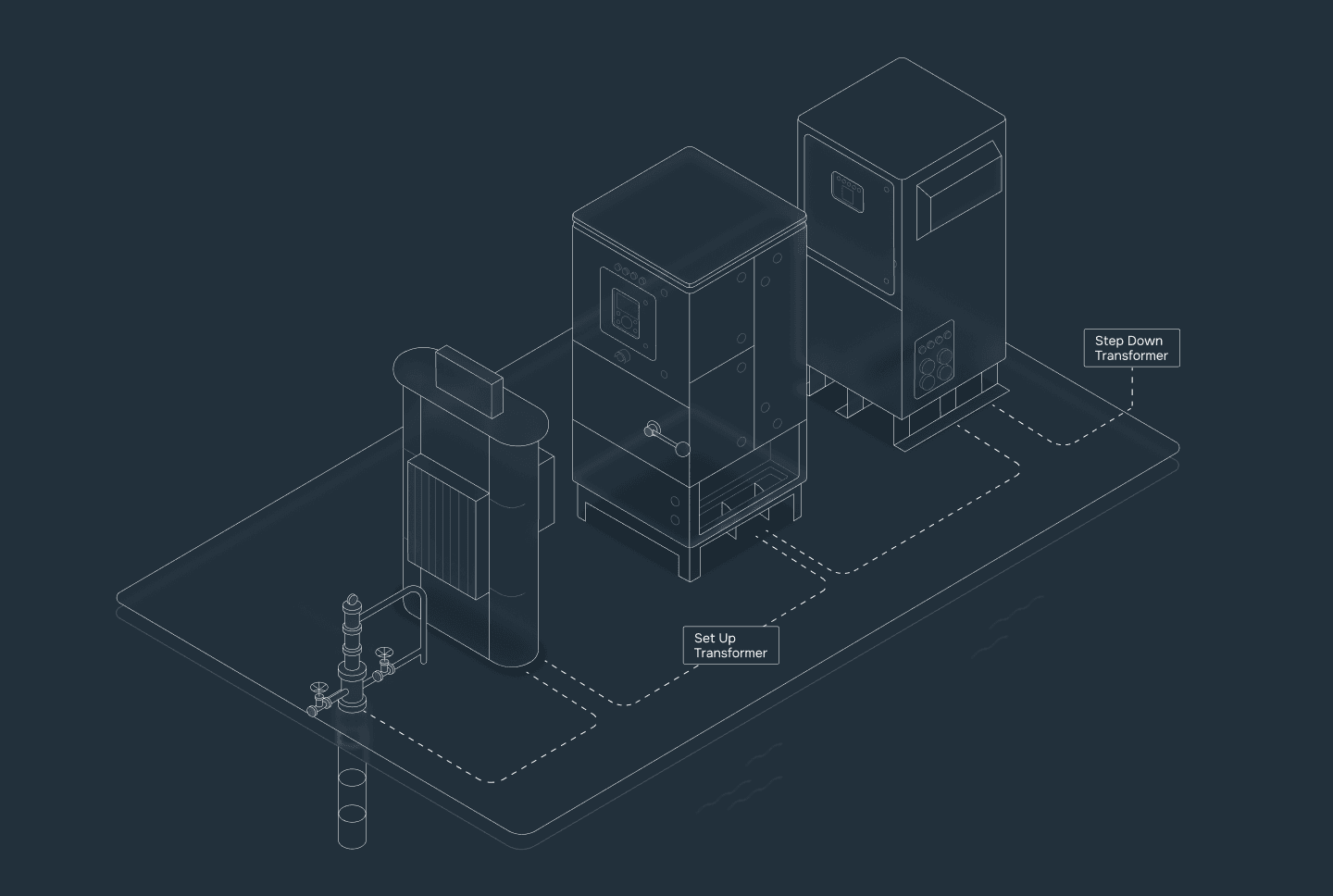

PF01 is part of Triol’s Power and Drive Systems

Documents

Catalog

PDF

ZIP

Characteristics

Output current range

90 A to 876 A

Overload capacity

150% for 60 seconds

Operating temperature

+1°C to +40°C (Base); -40°C to +55°C (Optional ranges)

Enclosure

IP00, IP23, IP54, NEMA 3R, NEMA 4

Network impedance compatibility

1.5% to 6%

Load compatibility

70-100% (Basic); 30-100% (with "Full & Half Power Mode")
